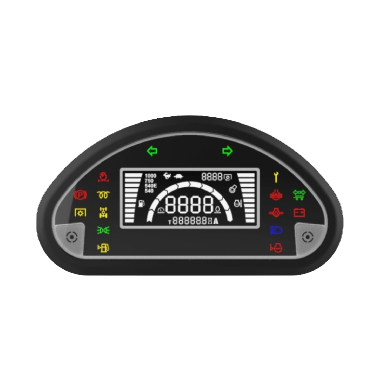

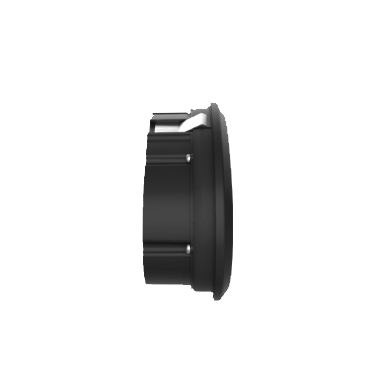

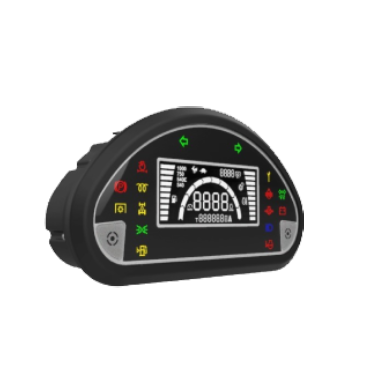

BC203 Instrument Cluster
BC203 is slightly smaller in size, making it ideal for off-highway and agricultural applications on compact vehicles.
- Designed and manufactured in Turkey.
- Semi-programmable fully digital instrument cluster.
- No mechanical parts. Buttons on left and right are touch buttons (much longer product life).
- Programmable via computer. Configuration settings can be uploaded or downloaded with computer software.
- Sensor parameters can be configured via computer software.
- Standby current consumption is below than 0.1mA.
- 16 indicators on front panel and additional 13 indicators on LCD (total 29 indicators).
- Automatic light intensity adjustment (easy on the eye).
- Speed, RPM, PTO RPM, PTO mode, battery level, battery percent, regenerative energy level, consumption energy level, ECO/NORMAL mode, charging current, remaing charging time, range km and range hour, odometer, total hourmeter, trip odometer, trip hourmeter, gear and error codes can be shown on LCD.
- Optionally can be produced with up to 27 digital inputs, 3 analog inputs, 2 frequency inputs and up to 2 outputs with protection.
- Compatible to all CAN-BUS protocols.
- Buzzer is included.
- Certificated IP66 grade housing.

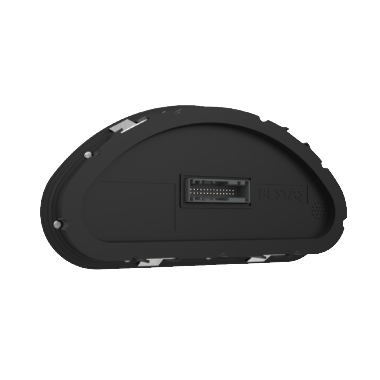

- Easy locked connector and springs at 4 sides provides additional security.
- Quick montage (no screws needed).
- Thanks to the internal heater works on low temperatures.
- Your own logo can be printed on the product and all indicator colors can be customized.
Technical Specs
| Operating Voltage | 9V-16V |
|---|---|
| Operating Temperature | -25°C / +70°C |
| IP Grade | IP66 (From Front Side) |
| Vibration Resistance Grade | 5g (16-50 Hz / 0.5mm) |
| Electromagnetic Test Grade | ECE R 10 |
| Stand-by Current Consumption | Below than 0.1mA |
| Display Type | Custom LCD |
| Max. Digital Input | 27 pcs |
| Max. Analog Input | 3 pcs |
| Max. Signal Input | 2 pcs |
| Max. Output | 2 pcs |
| Total Indicator | 29 pcs |
| Mating Connector | AMP 929053-1 |
| Dimensions | 230mm x 120mm x 47mm |
| Housing Material | UV resistant PC |
| Installation | Easy Installation via 4 Springs |
