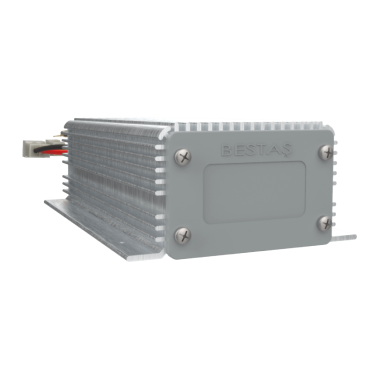

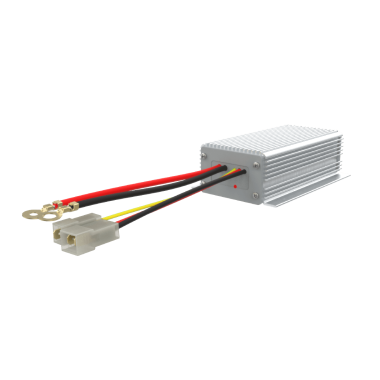

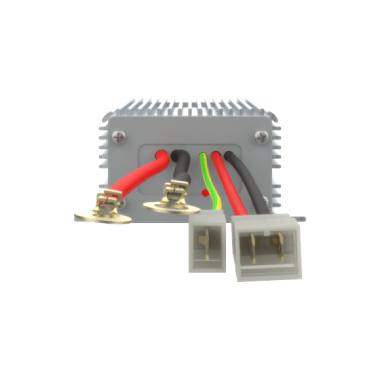

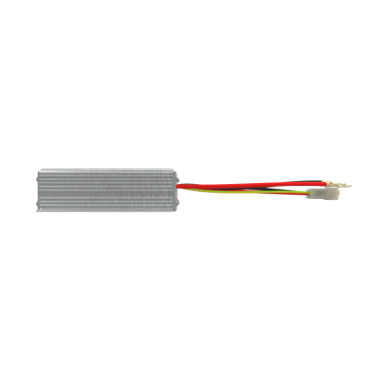

DC-DC Converter
With its wide input voltage range, high efficiency and high-power rating, it is ideal for electricity vehicles. It is safe, silent and configurable. Multiple converters can be connected in parallel form for high current output. The features of DC-DC converters can be listes as below;
⦁ Non-isolated
⦁ Wide input voltage from 18V to 85V
⦁ Stable output voltage is 13.5V
⦁ High rated power up to 560W (Max.)
⦁ Extra Security with Entrance Mosfet Layer
⦁ Safe start with Enable Pin
⦁ Programmable low and high input Voltage detection
⦁ Programmable low and high output Voltage detection
⦁ Programmable Undervoltage Detection Time
⦁ Programmable Shutdown Time
⦁ Status tracking with warning led
⦁ Current Consumption in the uA Level in Sleep Mode
⦁ High efficiency typical 95%
⦁ Fanless design for silent operation and Cooling by free air convection
⦁ Surface mountable
⦁ Voltage stabilisation protects sensitive equipment, lights and loads.
⦁ Ability to be connected in parallel for high currents
⦁ IP67 waterproof, Epoxy potting, Anti-vibration, Dustproof
⦁ Reverse connection protection
⦁ Over current protection
⦁ Over temperature protection
⦁ High power density
⦁ According to : Standards ( EN 61000-6-3:2007/A1:2011/AC:2012 EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011)
Technical Specs
| DC VOLTAGE | 13.5 |
|---|---|
| RATED CURRENT | 40 |
| RATED POWER POWER DENSITY | 560 (Max) |
| VOLTAGE ADJ. RANGE | 11 - 14 (Factory Adj.) |
| VOLTAGE RANGE | 18-85 |
| EFFICIENCY (Typ.) | 95% |
| DC CURRENT | 12.5A/48VDC |
| OVERLOAD | 105-125% Rated output power |
| OVER OUTPUT VOLTAGE | 14-16V |
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down |
| PROGRAMMABLE | Low/High input voltage, Low/High output voltage, Undervoltage Time, Shutdown Time, Warning Led |
| ENABLE PIN | Safe start and shutdown |
| OUTPUT WARNING LED | Shows Working Status LED |
| WORKING TEMP | (-20) ~ 85°C |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP. ,HUMIDITY | (-40) ~ +85°C, 10 ~ 95% RH non-condensing |
| COOLING | Free air convection |
