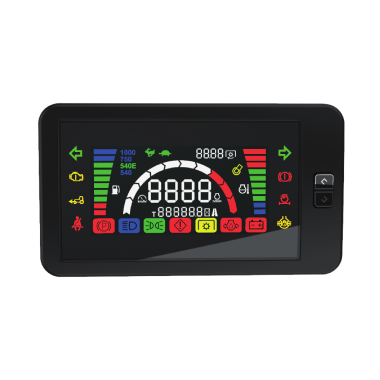

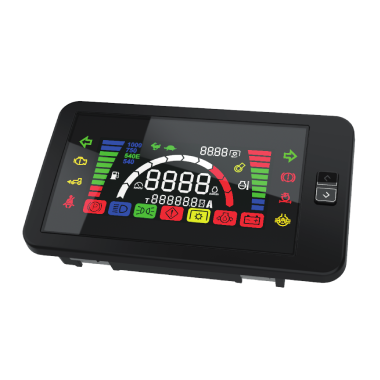

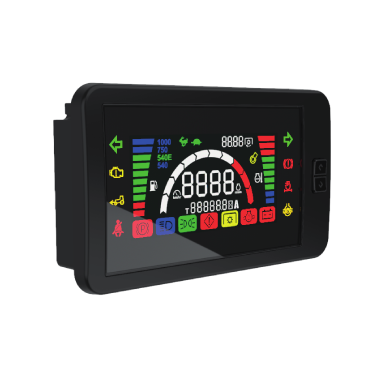

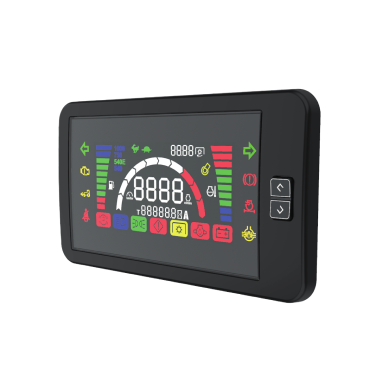

BC301 Diesel Instrument Cluster
Product Features
There are 8 LEDs in the product. There is a relay sound simulation for right and left signals. All alerts on the device can be controlled via the processor. Display functions can be controlled via two digital inputs. Connection between the digital inputs and the control buttons on the steering columns can be provided.
- Programmable via CAN (with PCAN)
- Built-in Buzzer Controllable with External Control Buttons
- Reverse Voltage Protection
- High Voltage Protection (With External Fuse)
- Compatible with All CAN-BUS Protocols
Screen Configuration
- Speed
- RPM
- Battery Level
- Battery Percentage
- Regenrative Energy Level
- Energy Expended Level
- ECO Mode Warning
- Remaining Charge Time
- Charge Current
- Range Km
- Range Clock
- Total Road
- Total Engine Hours
- Trip Yol
- Trip Motor Clock
- Gear Information
- Error Codes

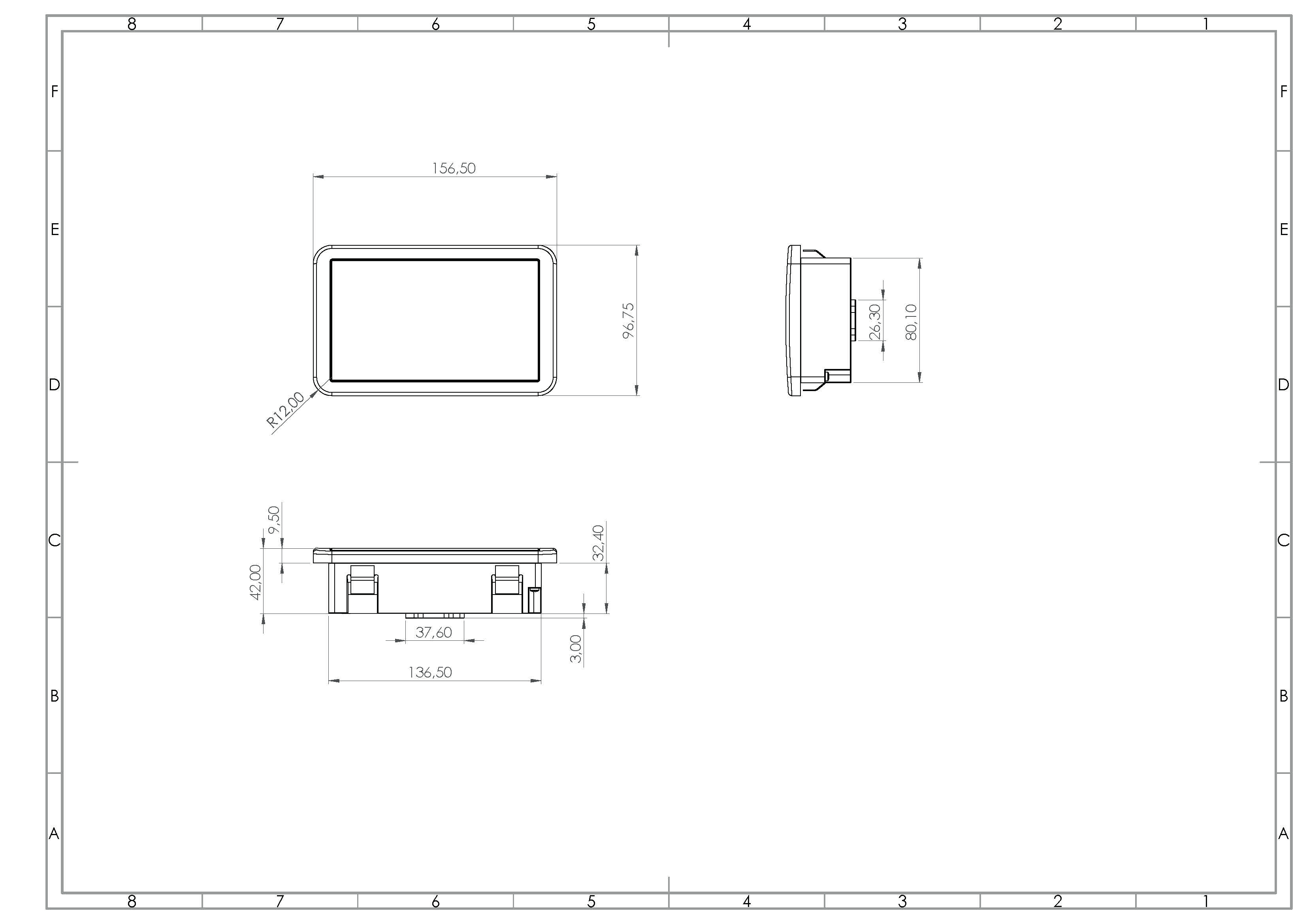

Assembly Diagram
Technical Specs
| Operating Temperature Range | -25°C/+70°C |
|---|---|
| Operating Voltage Range | 7V-16V |
| Sızdırmazlık Derecesi | IP66 (Front), IP54 Rear |
| Electromagnetic Test Class | ECE R 10 |
| Uyku Akımı | <0.1mA |
| Screen Type | VA Negative Color LCD |
| Communication Capabilities | CAN/RS232 (Opsiyonel) |
| Connector to be used | AMP 284666-2 (18 Pin) |
| Estimated Dimensions | |
| Mounting Method | Screwless Spring Mounting |
| Total Number of Alerts | 16 |
| Wake-Up Entry Count | 4 |
| Wakeup Input Polarity | + |
