What Is an Electronic Control Unit (ECU)?
20 Nov 2024
An Electronic Control Unit, or ECU, is often called the "brain" of modern vehicles. These essential components control various systems within a car, from engine and transmission management to safety and comfort features, ensuring efficient operation, safety, and high performance. As vehicles become increasingly complex, ECUs are playing an ever-growing role, managing not just basic functions but also advanced automation and electrification features that define today’s automotive technology.
Understanding the Basics: What Is an ECU?
An Electronic Control Unit is a computerized device embedded within vehicles that manages specific functions by receiving data from sensors throughout the vehicle. ECUs interpret this data through embedded software and algorithms, making real-time adjustments to different vehicle components based on the data received. In a modern car, there are usually multiple ECUs, each focused on specific systems, allowing each component of the vehicle to operate efficiently, safely, and reliably. The versatility of ECUs makes them crucial in both traditional combustion vehicles and the latest electric and hybrid models.
Key Types of ECUs in Modern Vehicles
Modern vehicles contain numerous ECUs, each dedicated to a particular system or function. Here are some of the most common types:
- Engine Control Unit (ECU): Manages the core functions of the engine, including fuel injection, ignition timing, and emissions control to ensure optimal performance.
- Transmission Control Unit (TCU): Coordinates gear shifting for smooth transitions and improved fuel efficiency.
- Anti-lock Braking System (ABS): Modulates brake pressure to prevent wheels from locking during emergency braking.
- Electronic Stability Control (ESC): Helps the driver maintain control by automatically adjusting brakes when skidding or sliding is detected.
- Airbag Control Unit: Detects collisions through sensors and deploys airbags as needed to protect occupants.
- Climate Control System: Regulates heating, ventilation, and air conditioning (HVAC) functions to maintain comfort.
- Lighting and Wiper Systems: Automates functions like headlight activation, adaptive lighting, and wiper operation to enhance safety and convenience.
Each ECU contributes to the vehicle’s overall functionality, enabling smoother driving experiences and enhanced safety.
How ECUs Work: Communication and Processing
ECUs rely on data from various sensors to operate effectively:
- Input from Sensors: ECUs receive information on critical parameters such as engine temperature, vehicle speed, and air pressure. For example, an engine ECU monitors crankshaft position and adjusts fuel injection and ignition timing.
- Data Processing: Embedded software within the ECU interprets sensor data using algorithms specific to each system. The software then determines appropriate actions to take based on conditions.
- Output to Actuators: After processing, the ECU sends commands to actuators that adjust vehicle components. For instance, the airbag ECU activates specific airbags depending on the nature of the collision, while the engine ECU might adjust throttle and fuel injectors for better performance.
By continuously processing data in real time, ECUs ensure that the vehicle adapts to changing conditions smoothly and efficiently.

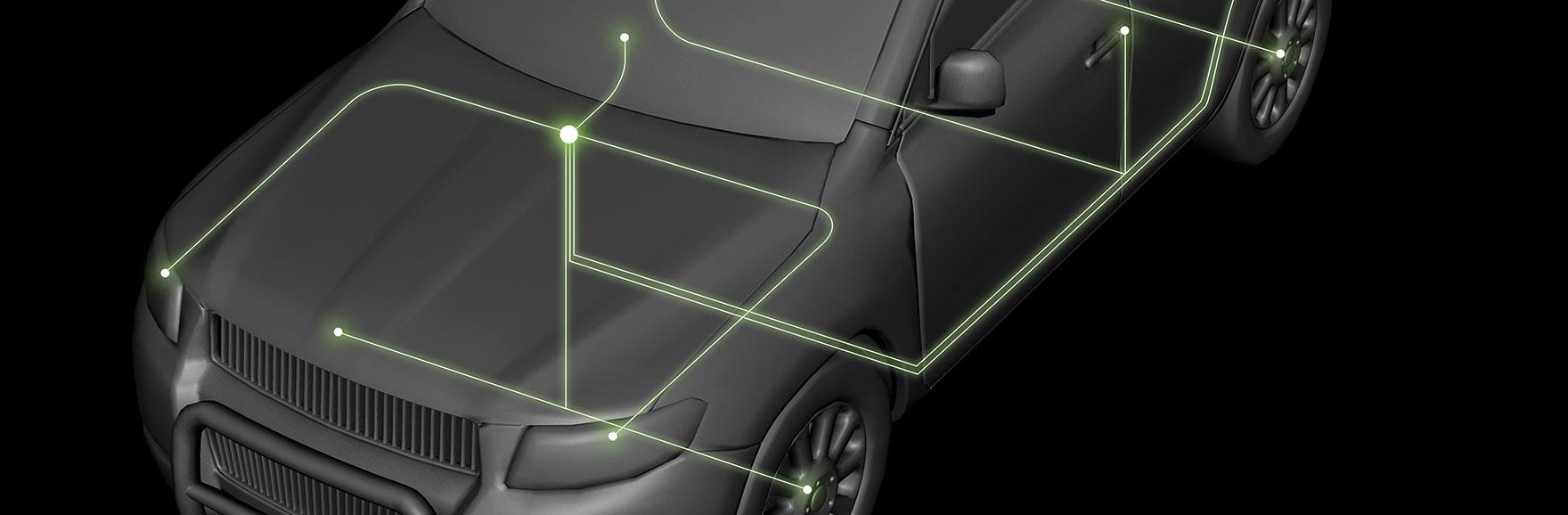

Communication Networks: The CAN Bus System
ECUs communicate with each other and various vehicle components using the Controller Area Network (CAN bus). This protocol is particularly suited for vehicles because it allows multiple ECUs to share data efficiently without needing complex wiring. Through the CAN bus, each ECU can act as a node, broadcasting and receiving data across the network.
Message Prioritization is a key feature of CAN, where more critical messages, like those from ABS or ESC systems, take precedence and are transmitted with minimal delay. This prioritization helps keep essential safety functions responsive, contributing significantly to vehicle safety.
The Evolution of ECUs in Automotive Technology
The role of ECUs has expanded significantly since their introduction:
- 1970s-1980s: Initially, ECUs managed simple engine functions like fuel injection and ignition timing. By the 1980s, they began handling emissions control and played a significant role in enhancing fuel efficiency.
- 1990s-2000s: ECUs were introduced to manage security, braking, and drive-by-wire throttle systems. They also became standard in diesel engines, helping improve turbodiesel efficiency.
- 2010s and Beyond: ECUs now control nearly every aspect of vehicle operation, from combustion to throttle and advanced emission systems. In modern electric and hybrid vehicles, ECUs also manage high-voltage powertrains and battery systems.
As automotive technology evolves, ECUs have become indispensable for autonomous driving features, enabling vehicles to detect and respond to obstacles using data from sensors like cameras, radar, and LiDAR.
ECU Trends and Future Developments
The future of ECUs includes several exciting developments:
- Autonomous Vehicles: ECUs play a pivotal role in autonomous driving, processing data from cameras, radar, and GPS to make split-second decisions about vehicle direction, speed, and braking. Advanced algorithms and AI enable autonomous vehicles to interpret surroundings and operate safely.
- Electric and Hybrid Vehicles: ECUs are essential for managing high-voltage powertrains, battery health, and energy consumption, ensuring electric vehicles (EVs) operate efficiently.
- Enhanced Connectivity and AI Integration: Modern ECUs are becoming increasingly connected, allowing for over-the-air updates, predictive maintenance, and cloud-based features. However, this connectivity also raises cybersecurity challenges, which will be crucial to address as vehicles become more connected and autonomous.
These trends highlight the ECU’s continuing importance in improving vehicle performance, safety, and convenience.
Common ECU Troubleshooting and Diagnostics
With the complexity of modern ECUs, diagnostic tools like the Komodo CAN Duo Interface are essential for troubleshooting. This tool monitors CAN communication, capturing data and helping technicians analyze and simulate ECU functions.
Fault Codes (e.g., OBDII codes) stored in the ECU memory can indicate specific issues, allowing technicians to quickly diagnose problems. These codes, combined with live sensor data, enable detailed insights into a vehicle’s performance, simplifying repair and maintenance.
Conclusion
Electronic Control Units are the backbone of modern automotive systems, performing essential tasks to ensure that vehicles operate safely and efficiently. From basic engine management to advanced driver assistance and autonomous driving, ECUs are central to modern vehicle functionality. As vehicles evolve, the role of ECUs will only grow, further integrating with AI, connectivity, and cybersecurity to shape the future of automotive technology.
